Iron removal plants can be based on different filtration media, depending on the iron and manganese concentration, the oxygen level, CO2 content and hardness of the water.


Plant principle :
First, air is injected in order to oxidize the iron. The oxidized iron will then precipitate on a sand filter. An MnO2 layer in the sand bed will catalyze the oxidation of residual iron. Backwash will be done by water and by air. More on iron removal principles


Filtration media choice vary as per the raw water parameter :
  • Sand + MnO2 for high iron concentrations
  • Calcite for acidic waters
  • Birm
  • Greensand


Other oxidation chemicals can be used for highly contaminated waters
  • Ozone
  • Chlorine
  • Chlorine dioxide


These chemicals also have a biocide effect but might interact with other component

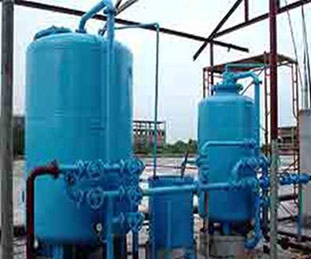

Typical deironing/iron removal plant includes:

  • Feed / backwash pump
  • Pressure vessel filled with deironing media
  • Valves, fittings and instrumentation
  • Air compressor
  • Air blower
